YAG Channel Letter Laser Welding Machine For Metal Stainless Steel Aluminum AD Words
Description:
The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of ad. character laser welding.
Advantages:
1. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3. The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4. The parameters are controlled by intelligent remote controller, which is simple and convenient.
5. The work bench can be lifted, and moved in three dimensions.
6. The size of light spot can be adjusted.
Applications:
Material are mainly stainless steel, copper, aluminum, alloys. And its welding field can be extensive, like cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
It is mainly used in advertising industry for welding channel letter .But the application can also be extended to other fields ,like aeronautical and space, mechanism, electron, communication, dynamic, chemical industry, automobile manufacture, the close welding of lithium ion batteries and other industries.
Specifications:
| Bearing of work bench | ≤200kg |
| Device weight | 300kg |
| Power supply | 220V±10%/50Hz or 380V±10%/50Hz |
| Laser type | Nd:YAG pulse |
| Adjusting range of light spot | 0.1-0.3mm |
| Size of light spot | 0.2-3.0mm |
| Laser wavelength | 1064nm |
| Pulse width | ≤20ms |
| Maximum laser power | 200W |
| Pulse frequency | ≤50Hz |
| Laser output focus length | 100mm/150mm (optional) |
| Laser cooling | Water cooling |
| Welding wire diameter | 0.1mm-0.8mm |

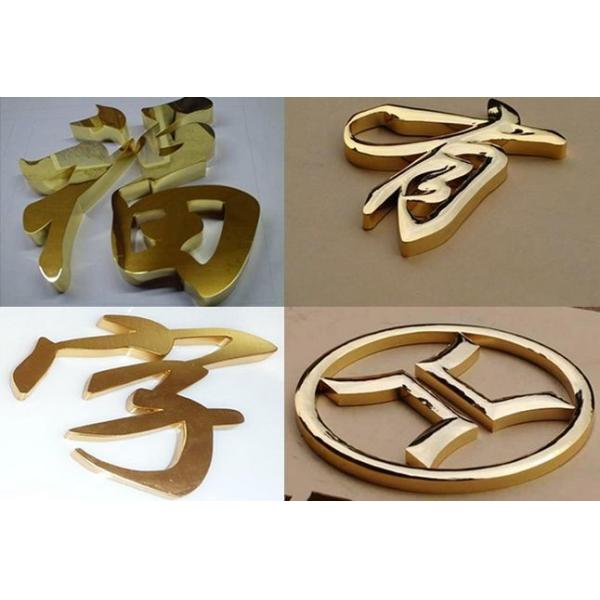

Samples:
